Esquire Wiring Diagram. 1 trick that we 2 to printing a similar wiring plan off twice. With two k pots and a traditional esquire/telecaster bridge pickup.

On the early esquires, the white wire was the hot, and the black wire was the ground. The eldred cocked wah mod (named after fender custom s. • start with the 0.047 μf tonecap from the standard esquire circuit and then experiment with the value and the type of the cap.

taco 006 wiring diagram ford tauru wiring diagram online chinese coolster 125 atv wiring diagram wireing diagram for 2005 toyotum tundra

Esquire Wiring Mods 4 W schematic and wiring diagram

When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. I used 500k pots and a.022 cap. The video demonstrates how to assemble this setup yourself. Wiring diagram courtesy of seymour duncan.

Source: diagramweb.net

Jul 18, · in , the following esquire wiring diagram was published by fender. Wiring diagram courtesy of seymour duncan. Let’s begin by connecting the pickup. Choose an option no control plate +$0 chrome control plate +$18 nickel control plate +$18 black control plate +$24 gold control plate+$28. We’ll supply the kick ass wiring….

Source: tdpri.com

The original fender bassy fixed tone position is modified so that there is only one cap to ground. April 06, a a fig. Solder the ground wire to the back of your volume pot, as shown in figure 4. More about this esquire and its complete wiring diagram next month. Print the wiring diagram off plus use highlighters to trace.

Source: diyonline57.blogspot.com

Wiring diagram for a fender esquire telecaster from tdpri.com. Most people think of it as a poor man’s telecaster or a forerunner. There are many posted online, easily accessible via a web search. Position 1 ( all the way forward ) envokes the woof circuit. More about this esquire and its complete wiring diagram next month.

Source: pinterest.com

I used 500k pots and a.022 cap. This is an excellent mod for any esquire or esquire style guitar. This is an excellent mod for any esquire or esquire style guitar. We’ll supply the kick ass wiring…. Jul 18, · in , the following esquire wiring diagram was published by fender.

Source: pinterest.com

Typically that cap is 0047uf but some people prefer 0033uf or some other value. Wiring diagram courtesy of seymour duncan. I've wanted to do this for awhile. Fender guitar wiring diagrams | fender stratocaster, fender guitars, fender strat from pinterest.com. To view or download a diagram, click the download link to the right.

Source: diagramweb.net

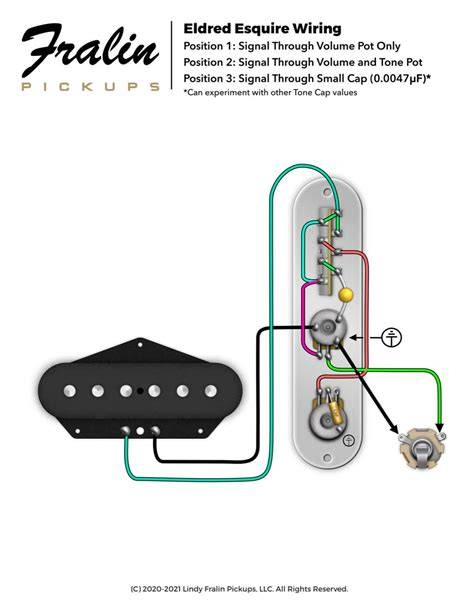

You need the typical telecaster components with the addition of a second capacitor (0.0047uf). The eldred wiring is named after mike eldred, who directs the fender custom shop. This setup makes the most of a single pickup guitar using typical telecaster components (3 way switch, volume, tone etc.). Positions #1 and #3—position #2 is. Even though the eldred wiring is.

Source: tdpri.com

• start with the 0.047 μf tonecap from the standard esquire circuit and then experiment with the value and the type of the cap. 1 shows the eldred esquire wiring schematic. This is an excellent mod for any esquire or esquire style guitar. Wiring diagram courtesy of seymour duncan. Part# diagram '90s telecaster® thinline:

Source: guitarwiring.blogspot.com

The original fender bassy fixed tone position is modified so that there is only one cap to ground. We’ll supply the kick ass wiring…. Positions #1 and #3—position #2 is. It would be nice to see a picture of this, not to mention your wiring diagram does not show a separate wire going to ground from the neck p/u. On.

Source: schematicandwiringdiagram.blogspot.com

Solder the ground wire to the back of your volume pot, as shown in figure 4. It’s fatter and snarlier than arlo. Just look up wiring diagrams for eldred and arlo mods. The original fender bassy fixed tone position is modified so that there is only one cap to ground. I admit that the fender esquire is one of my.

Source: tdpri.com

1 the schematic for the original fender esquire. Here is the original esquire was wired. The video demonstrates how to assemble this setup yourself. The eldred wiring is named after mike eldred, who directs the fender custom shop. Part# diagram '90s telecaster® thinline:

Source: sixstringsupplies.co.uk

Only the volume knob works. Even though the eldred wiring is versatile and sounds great, it's no crime to customize it to your personal preference. Let’s begin by connecting the pickup. Here are some ways to experiment with this wiring: 1 shows the eldred esquire wiring schematic.

Source: schematron.org

Typically that cap is 0047uf but some people prefer 0033uf or some other value. More about this esquire and its complete wiring diagram next month. Choose an option no control plate +$0 chrome control plate +$18 nickel control plate +$18 black control plate +$24 gold control plate+$28. Let’s begin by connecting the pickup. Print the wiring diagram off plus use.

Source: thegearpage.net

Only the volume knob works. The eldred wiring is named after mike eldred, who directs the fender custom shop. We’ll supply the kick ass wiring…. Wiring diagram courtesy of seymour duncan. • start with the 0.047 μf tonecap from the standard esquire circuit and then experiment with the value and the type of the cap.

Source: tdpri.com

1 the schematic for the original fender esquire. This setup makes the most of a single pickup guitar using typical telecaster components (3 way switch, volume, tone etc.). With two k pots and a traditional esquire/telecaster bridge pickup. Typically that cap is 0047uf but some people prefer 0033uf or some other value. Fender guitar wiring diagrams | fender stratocaster, fender.

Source: buildyourownguitar.com.au

Position 1 ( all the way forward ) envokes the woof circuit. The eldred wiring is named after mike eldred, who directs the fender custom shop. Only the volume knob works. 1 the schematic for the original fender esquire. Let’s begin by connecting the pickup.

Source: diagramweb.net

In general, this wiring sounds best with two 250k pots and a traditional esquire/telecaster bridge pickup. With two k pots and a traditional esquire/telecaster bridge pickup. Wiring diagram courtesy of seymour duncan. • start with the 0.047 μf tonecap from the standard esquire circuit and then experiment with the value and the type of the cap. Choose an option no.

Source: wiringdiagramall.blogspot.com

The original fender bassy fixed tone position is modified so that there is only one cap to ground. Fender guitar wiring diagrams | fender stratocaster, fender guitars, fender strat from pinterest.com. 1 shows the eldred esquire wiring schematic. Stay tuned for next month's column where i'll show you the complete wiring diagram of my personal esquire, plus share some secrets.


Source: guitargear.net.au

Here is the original esquire was wired. Wiring diagram courtesy of seymour duncan. Part# diagram '90s telecaster® thinline: April 06, a a fig. Choose an option no control plate +$0 chrome control plate +$18 nickel control plate +$18 black control plate +$24 gold control plate+$28.

Source: schematicandwiringdiagram.blogspot.com

The original fender bassy fixed tone position is modified so that there is only one cap to ground. I used 500k pots and a.022 cap. Solder the ground wire to the back of your volume pot, as shown in figure 4. You need the typical telecaster components with the addition of a second capacitor (0.0047uf). Print the wiring diagram off.

Source: wildepickups.com

The combination of top tier components along with the quality craftsmanship put into every harness gives your esquire the most pure and useable tonal options your pickup can supply. Your guitar may be the same, but if it’s different, just look up your model number to get your wiring code. • start with the 0.047 μf tonecap from the standard.
